RAVO R2 sweeping in Battersea Park, London

RAVO R2

Setting the standard in urban cleanliness as The Bicycle Lane Sweeper.

Class-leading suction and sweeping performance combine with exceptional comfort and agility – the R2 excels in any urban environment.

  • Unrivalled suction performance in the compact segment.
    The unique suction line is designed with a 10” straight suction tube and a 7650 CFM turbine to optimize airflow. The R2 sets the standard for vacuum performance.

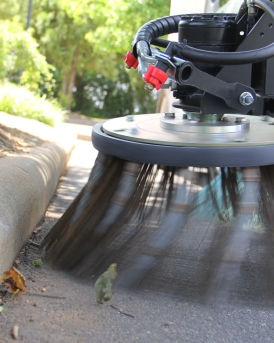

  • Patented push/pull sweeping system. Clean the most difficult to reach areas with a unique broom deployment and independently controlled brooms. The R2 reaches up to 96” (or up to 114” with third broom option).
  • Agile in the city. A short overhang and selectable 2 and 4 wheel steering, with a patented auto-steer system, helps the operator sweep in tight spaces. This system also makes the transition from sweeping to transit easy.
RAVO R2 studio photo.

A RANGE OF ENGINE OPTIONS

Our engine options deliver powerful low-speed performance, while keeping the environment in mind.

  • Kubota V3800-CR-T-E5B Direct Injection Diesel Engine
  • Kubota WVG3800-G

A Flexible Range of Front Tools

The Third Brush tool on the RAVO R2 sweeper.

Third Broom



The R2’s third broom option extends sweep coverage to an impressive 114”. It is also perfect for weed removal applications, without the need to use harmful chemicals.
R2 high pressure spray bar.

High Pressure Spray Bar



For dedicated street washing, the front spray bar attachment delivers exceptional coverage for in-depth cleaning of the road surface.
R2 fitted with the front scrubbing deck announcement.

Scrubbing Deck



A dedicated scrubbing head, with three powerful brooms and an integrated detergent tank, is perfect for renovating any type of road surface.





R2 fitted with snow brush attachment

Winter Maintenance
Equipment

The R2 offers a number of flexible front tools to help customers tackle winter maintenance including a snow broom, snow plow and sand/salt spreader.






For a Cleaner Environment

Water

A reduction in clean water consumption thanks to its recirculation system.

Particulate Emissions

Low particulate emissions - 4 stars in the EUnited PM2.5/10 test.

Manufacturing

ISO 9001, ISO 14001 and ISO 45001 certifications - guaranteeing that our manufacturing process takes the environment into account

Recyclability

High end-of-life recyclability.
RAVO R2 in London.
RAVO R2 in London
RAVO R2 sweeping in Battersea Park, London
RAVO R2 in Battersea Park.
RAVO R2 sweeping in Battersea Park, London
RAVO R2 sweeping in Battersea Park, London
