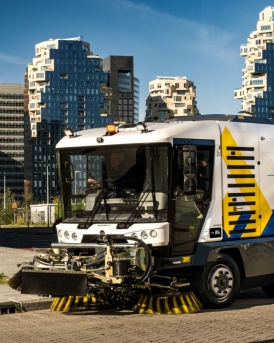

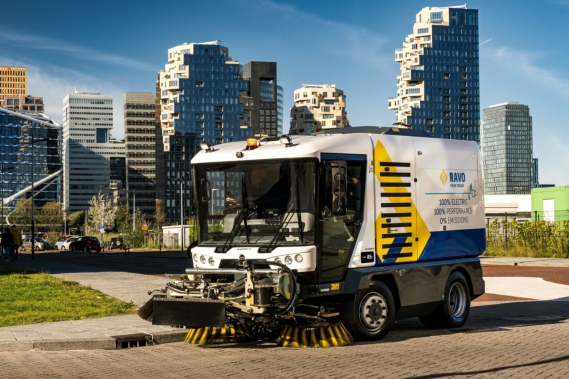

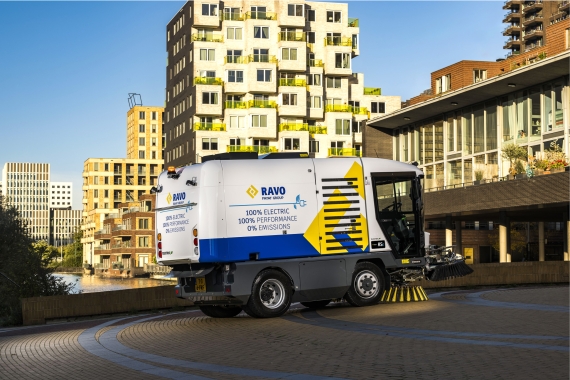

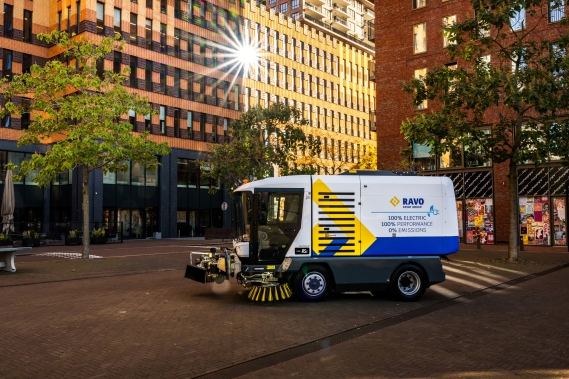

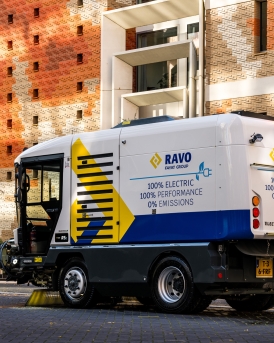

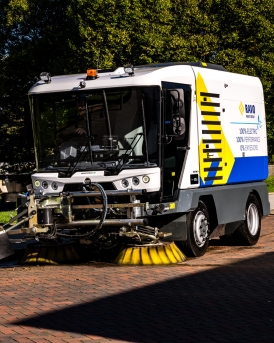

RAVO R5e

PRODUCT DESCRIPTION

With powerful all-electric performance and exceptional manoeuvrability, the R5e is the ideal sweeping solution in a range of urban environments.

Optimized electric performance. The R5e's Battery Management System optimises the level of kW/h consumption to offer full shift autonomy.
The preferred choice. RAVO's LiFePO4 battery has been specifically chosen to offer our customers safe sweeper maintenance and the longest lifecycle on the market.
Warranty that's got you covered. Have the peace of mind that the warranty of your R5e battery is 8000 hours or 5 years.
Cabin Preheating & Cooling. Pre-set the temperature of the cabin before the start of your shift. Preconditioning allows you to heat or cool the cabin to a comfortable level while the RAVO is plugged in. By using power from the charger, battery energy is being preserved to maximize the operating range.

SPECIFICATIONS

BATTERY: LiFePO4
Size: 25,133 lbs GVW
BATTERY CAPACITY: 100 kWh / 480 v
SWEEPING SPEED: 0 - 9 mph
HOPPER CAPACITY: 6.5 yd3
WATER TANK: 160 gal
SWEEP WIDTH:
> 95” (Standard)
> Up to 130” (with 3rd broom)

CHARGING OPTIONS:

Level 2 Charging Station 208-240 VAC, Single Phase @ 40 amps, minimum 8kW/h output, Type 1 J1772 Charging Plug.
Level 2 DC Charging Station 50kW/h @ 600 VDC

DOWNLOADS

Trusted RAVO Performance

The R5e combines all of the performance benefits of the RAVO R5 with reliable, innovative electric technology to offer customers the sweeping performance they expect plus low noise, optimised energy usage, exceptional battery management and fast charging capabilities.

100% Electric Performance

The fully electric R5e doesnt rely on an internal combustion engine for propulsion meaning that customers achieve the performance they expect from their RAVO sweeper, without emitting CO2 or Nitrogen Oxides into the environment.

Quiet Performance

At an industry-low 64 dB outside the cabin, the R5e makes early-morning and late-night shifts viable. Inside the cabin, exceptional soundproofing technology results in low noise levels for operators. The maximum sound level is no more than 61 dB.

Regenerative Braking

The R5e generates its own energy. When the accelerator is released, the electric motor works like an alternator – the energy that is generated is used to recharge battery. The regenerative braking system allows optimal efficiency of the sweeper, maximizes its autonomy and reduces its operating cost.
